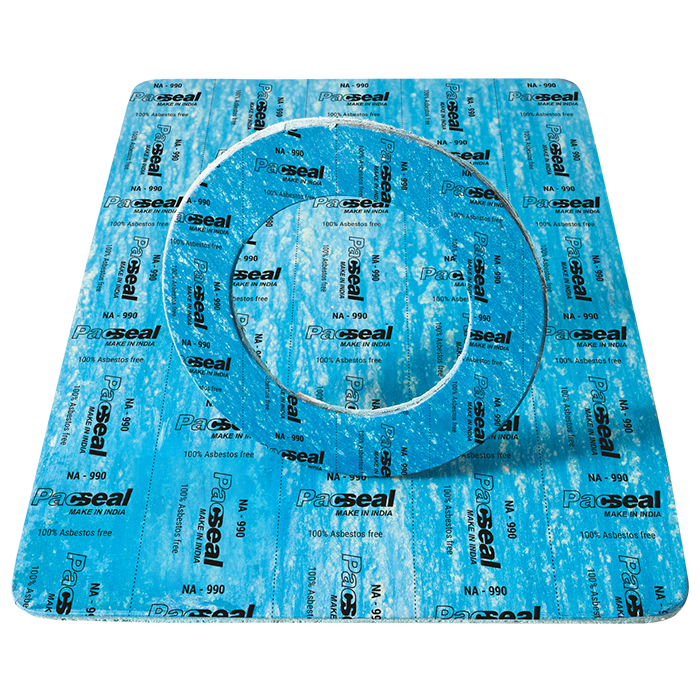

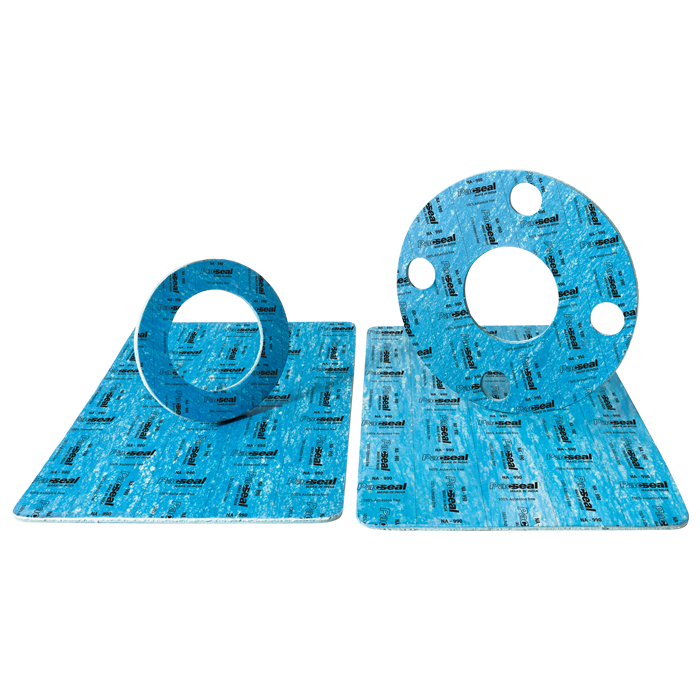

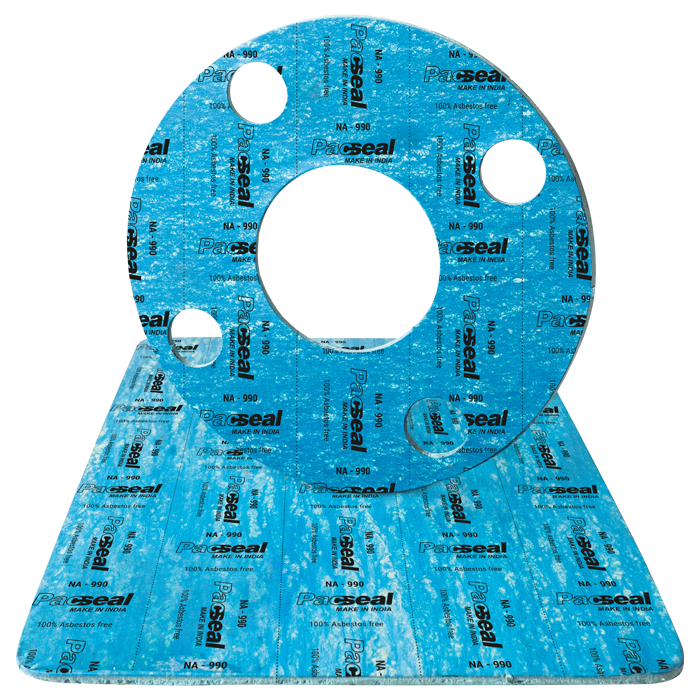

PACSEAL NA 990
A Premiuim Grade jointing sheet based on Aramid fibre, Glass Fibre, NBR, High Media Resistance High
Stress Condition.
| Max. Operating Pressure: | 100 Kg/CM2 |
| Max. Peak Temperature: | 440°C |
| Max. Continuous Temperature: | 250°C |
| Density: | 1.70 – 2.00 g/cm3 |
| Tensile Strength (Across Grain): | > 8 N/mm2 (ASTM F 152) |
| Tensile Strength (Across Grain): | > 5 N/mm2 (DIN 52910) |
| Compressibility: | 7-15 % (ASTM F 36) |
| Recovery: | > 50 % (ASTM F 3) |
| Ignition Loss: | ≤ 30 % |
| Specification Compliance: | (BS 7351) |
| ASTM Oil No. 3 |
| Thickness Increase % = <10 |
| Mass Increase %= <10 |
| Fuel B |
| Thickness Increase % = <10 |
| Mass Increase %= <10 |
Note: Graphite coating, Wire gauze reinforcement and antistick coating, Teflon coating are also available on request.
