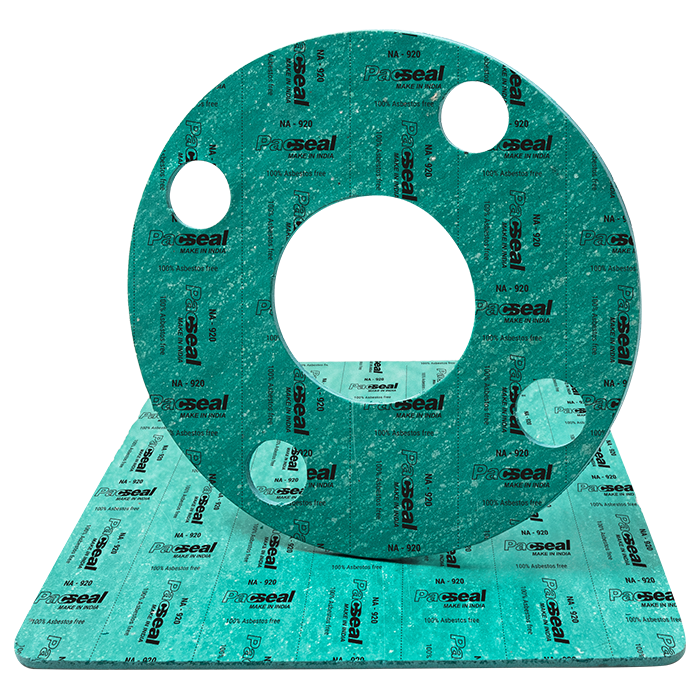

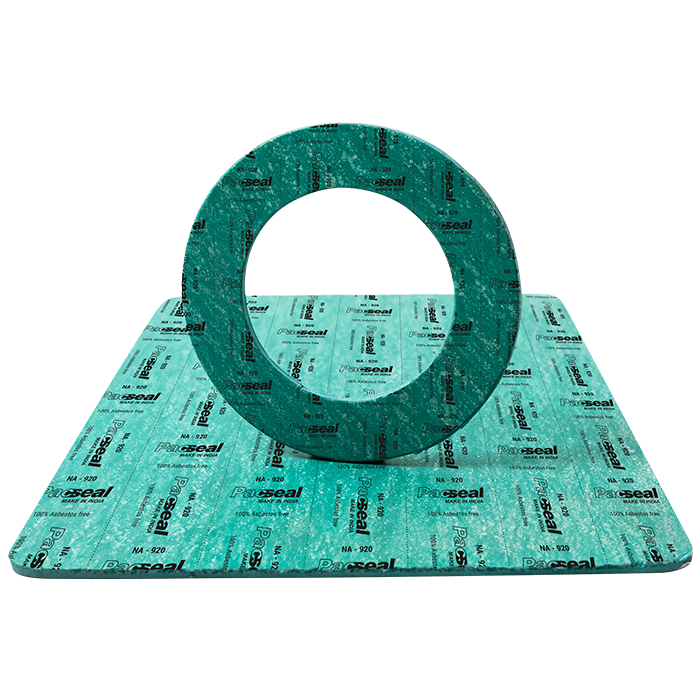

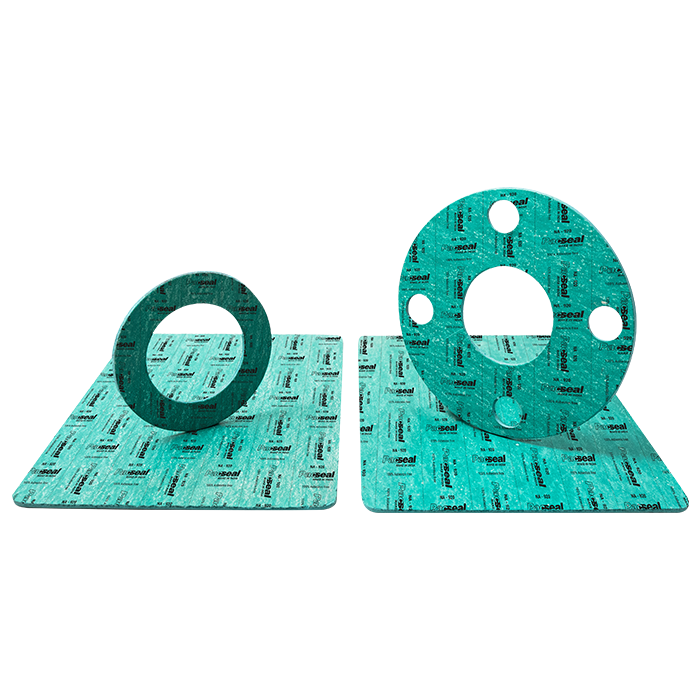

PACSEAL NA 920
A compressed synthetic Aramid Fibre, Mineral Fibre, NBR Water/Oil resistant. For light to medium loadings, suitable for low operating pressure.
Suitable for Light industrial application.
| Max. Operating Pressure: | 25 bars |
| Max. Peak Temperature: | 400°C |
| Max. Continuous Temperature: | 250°C |
| Density: | 1.70 – 2.00 g/cm3 |
| Tensile Strength (Across Grain): | 11.5 MPa (ASTM F 152) |
| Compressibility: | 8-11 % (ASTM F 36) |
| Residual Stress: | ≤ 22 MPa (BS 7531) |
| Gas Permeability: | < 0.5 cc/Min (BS 7531) |
| Recovery: | ≥ 45 % (ASTM F 3) |
| Water Absorption: | ≤ 5 % (BS 7531) |
| Sealability Against Nitrogen: | ≤ 30 % |
| ASTM Oil No. 3 |
| Thickness Increase % = ≤ 10 |
| Mass Increase %= ≤ 10 |
| Fuel B |
| Thickness Increase % = ≤ 10 |
| Mass Increase %= ≤ 10 |
Water, Gases, Medium Pressure Steam, Dilute Acids/Alkalies.
Note: Graphite coating, Wire gauze reinforcement and antistick coating, Teflon coating are also available on request.
